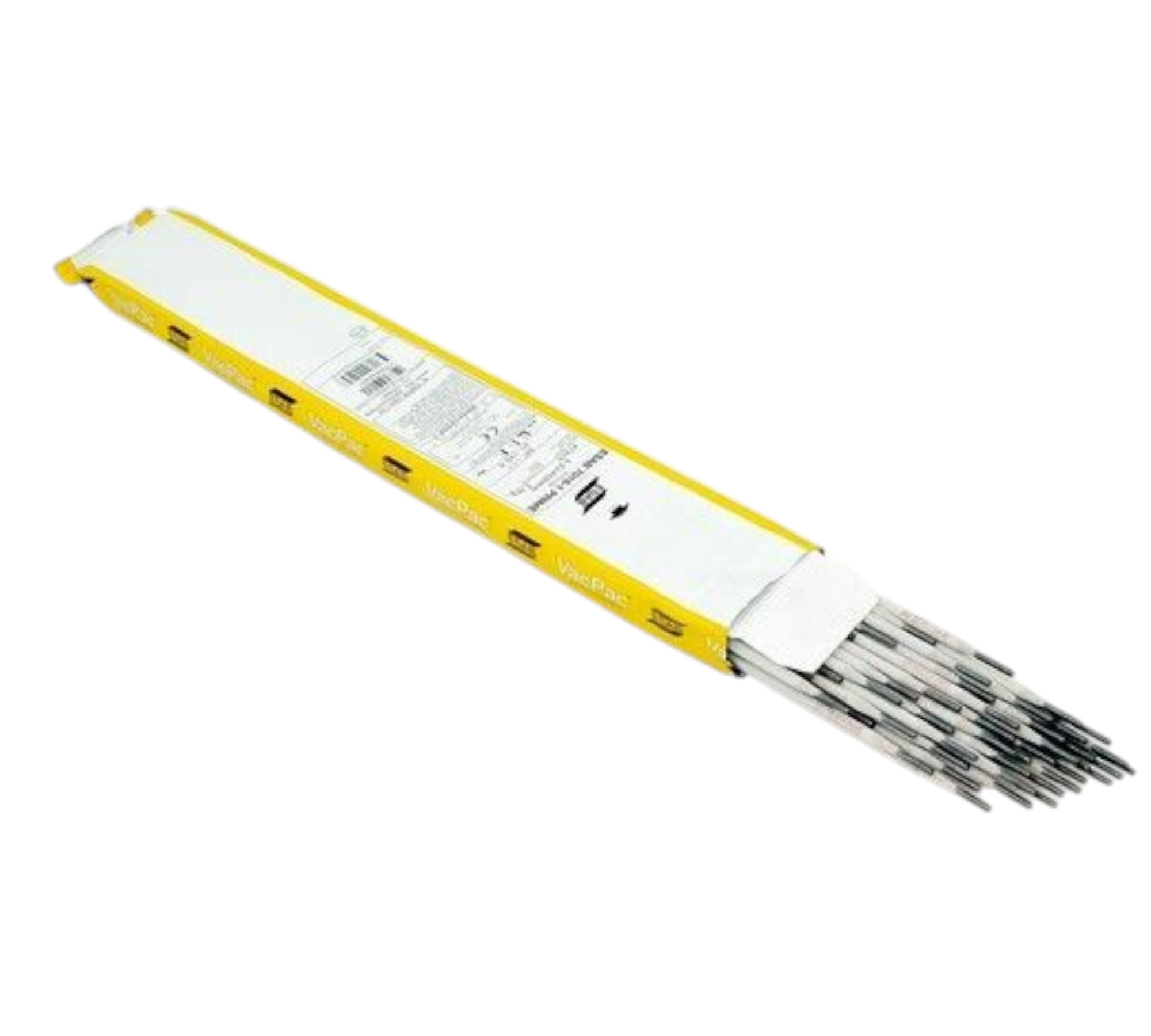

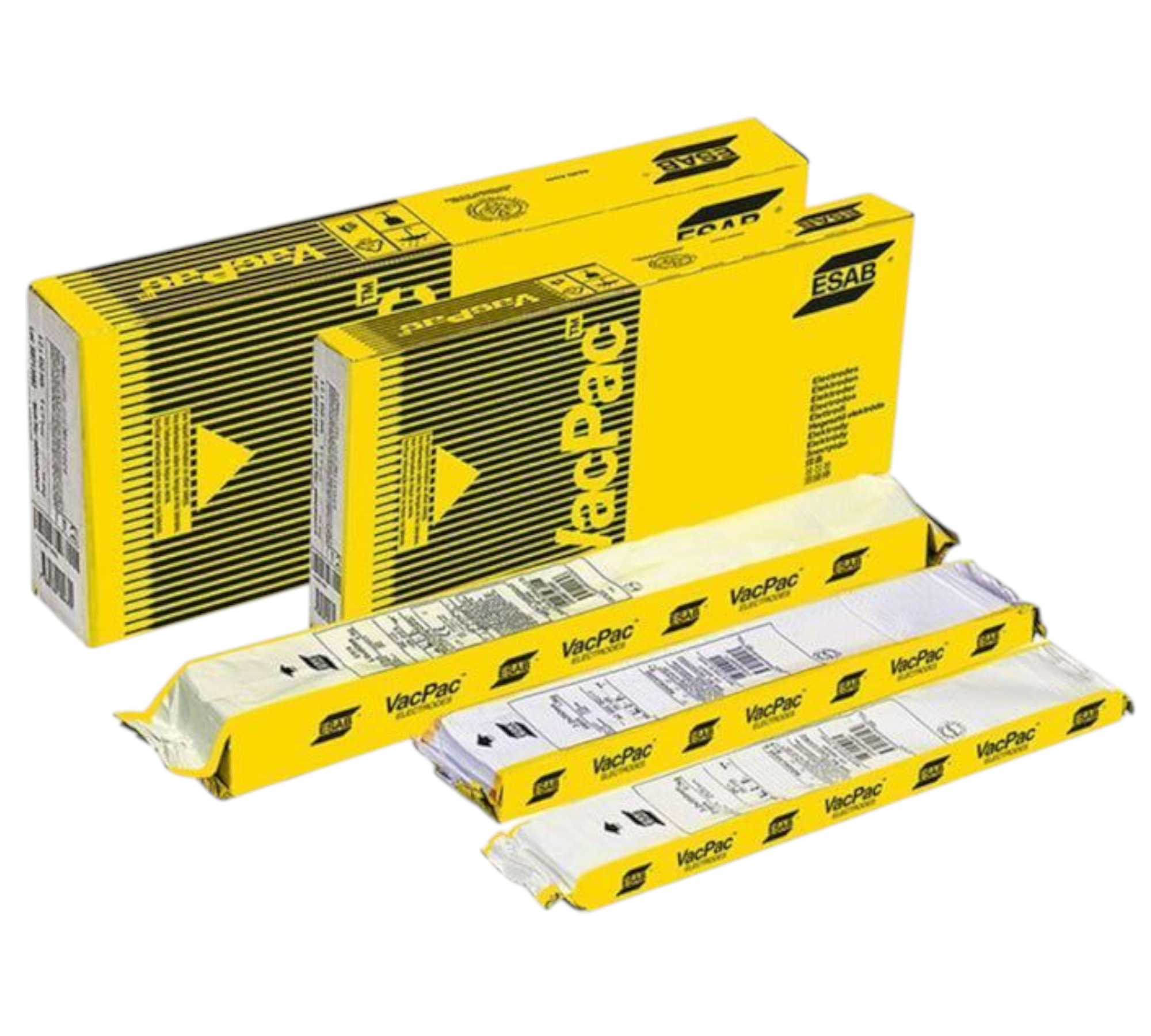

ESAB 7018 Welding Electrodes
Roll over image to zoom in
ESAB 7018-1 Prime is a reliable, high-quality electrode, providing high deposition rate and extra low moisture absorption. It provides excellent welding pool control, minimal spatter level, good arc strike and easy slag removal making it easy to weld with, including in out-of-position welding. Particularly suitable for welding high strength low-alloy steels. The low-temperature impact strength of the weld metal should be noted.
| Specifications | |
|---|---|
| Classifications | SFA/AWS A5.1 : E7018-1H4 R SFA/AWS A5.1 : E7018H4 R CSA W48 : E4918-1-H4 EN ISO 2560-A : E 46 5 B 32 H5 |
| Approvals | ABS : 3Y H5 CWB : E4918-1-H4 DNV : 3Y H5 |
Approvals are based on factory location. Please contact ESAB for more information.
| Welding Current | AC, DC+ |
| Diffusible Hydrogen | < 4.0 ml/100g |
| Alloy Type | Carbon Manganese |
| Coating Type | Basic covering |
| Min AC OCV | 65 V |
| Typical Tensile Properties | |||
|---|---|---|---|
| Condition | Yield Strength | Tensile Strength | Elongation |
| AWS | |||
| As Welded | 500 MPa ( 73 ksi ) | 580 MPa ( 84 ksi ) | 30 % |
| ISO | |||
| As Welded | 510 MPa ( 74 ksi ) | 590 MPa ( 86 ksi ) | 29 % |
| Typical Charpy V-Notch Properties | ||
|---|---|---|
| Condition | Testing Temperature | Impact Value |
| AWS | ||
| As Welded | -45 °C ( -49 °F ) | 130 J ( 96 ft-lb ) |
| ISO | ||
| As Welded | -45 °C ( -49 °F ) | 115 J ( 85 ft-lb ) |
| As Welded | -50 °C ( -58 °F ) | 105 J ( 78 ft-lb ) |
| Typical Weld Metal Analysis % | ||
|---|---|---|
| C | Mn | Si |
| 0.06 | 1.5 | 0.5 |
| Deposition Data | |||||
|---|---|---|---|---|---|
| Diameter | Current | Voltage | Deposition Efficiency (%) | Burn-off Time/Electrode | Deposition Rate @ 90% I max |
| 2.4 x 350.0 mm ( 3/32 x 13.8 in. ) |
80-110 A | 23 V | 64 % | 64 sec | 0.9 kg/h ( 2.0 lbs/h ) |
| 3.2 x 350.0 mm ( 1/8 x 13.8 in. ) |
110-140 A | 23 V | 62 % | 72 sec | 1.2 kg/h ( 2.6 lbs/h ) |
| 4.0 x 350.0 mm ( 5/32 x 13.8 in. ) |
110-200 A | 23 V | 62 % | 72 sec | 1.77 kg/h ( 3.9 lbs/h ) |
