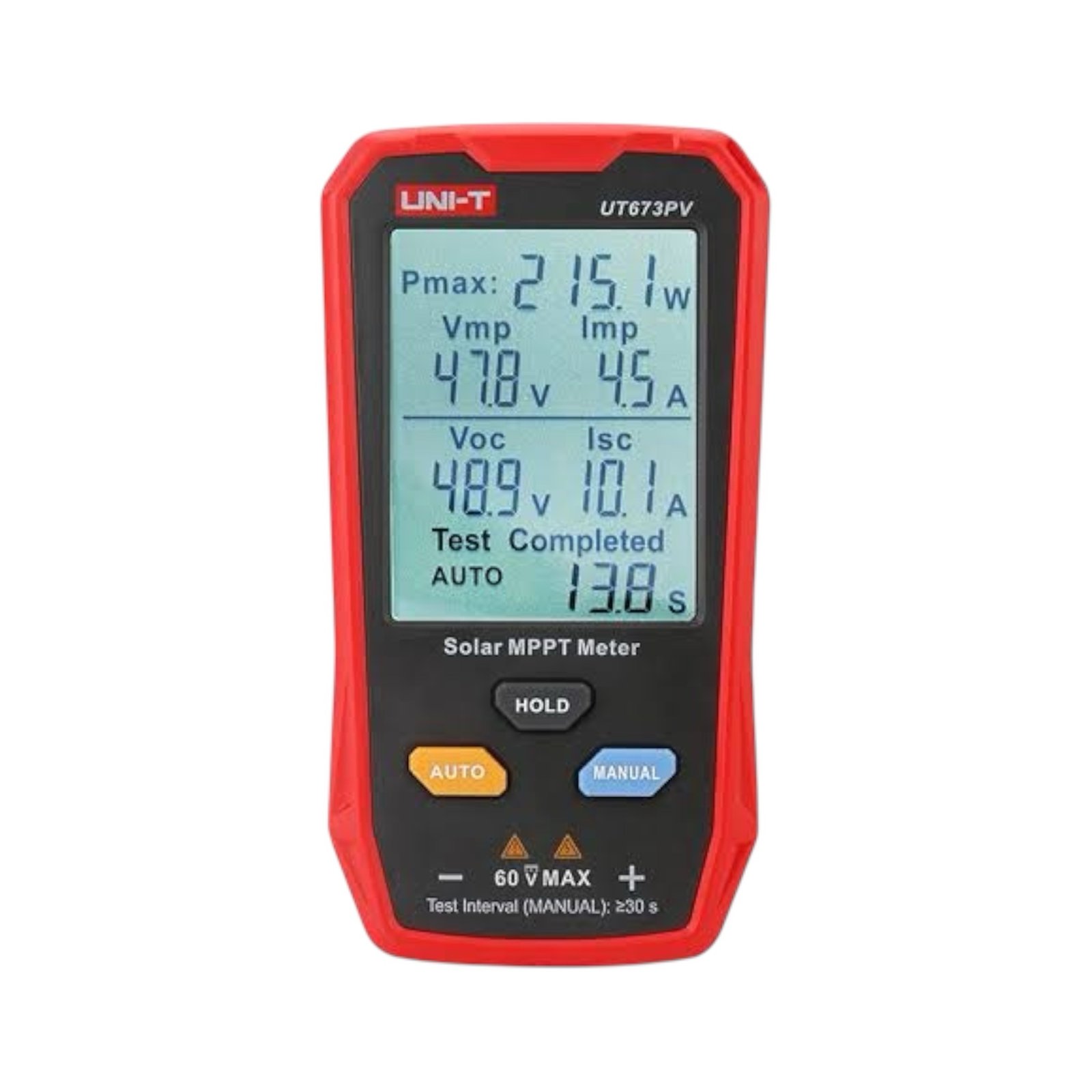

UT673PV Solar Panel Tester, Solar MPPT Meter (UNI-T)
₨ 14,000
UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users
- UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.
- Range: Maximum power test (Pmax) 5～800W, Peak power voltage (Vmp) 12～60V, Peak power current (Imp) 0～35A, Open circuit voltage (Voc) 12～60V, Short circuit current (Isc) 0～35A
- Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Free switching of multiple languages ( EN, FR, DE, IT, ES, SV, PL, CZ )
- Large screen and multiple result display. No batteries needed, powered by the solar panel. Equipped with MC4 test lead. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users

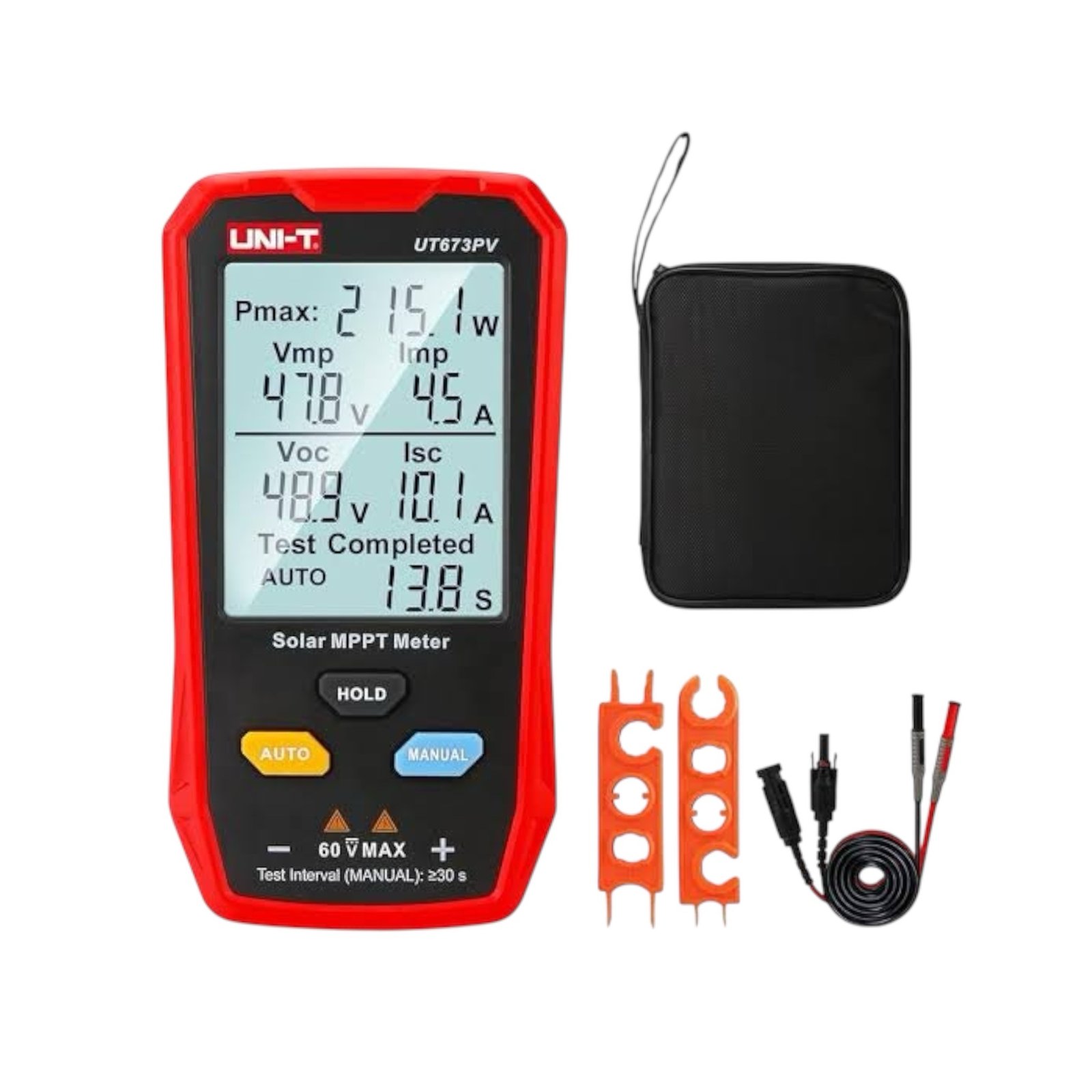

- Safe & Durable: Safety Class CAT 0 100V. What you get: 1 x UT673PV Solar MPPT Meter, 1 x paper Manual, 1 x Cloth Bag, 1 x MC4 wrench Tool, 1 x MC4 test lead
- Easy access to UNI-T 7/24 1 to 1 user support. If you encounter any problems during use, please contact us first (via e-mail) and our customer service team will deal with your problem as soon as it is received
